Linear wireless ultrasound
Zetrino Linear X9
Zetrino Linear X9 is a full-width wireless linear-array probe created for high-resolution superficial and vascular imaging on compatible phones and tablets. Its 7.5 and 10.0 MHz frequencies, 20–100 mm depth settings and 40 mm footprint provide a versatile field of view for...
- Connects to compatible phones and tablets
- No cart-based console or cable required
- Configuration guidance from a product specialist
Pricing is provided by inquiry after market, configuration, and availability review.
At a glance
The essentials, clearly presented.
Product overview
Built around focused clinical work.
Zetrino Linear X9 is a full-width wireless linear-array probe created for high-resolution superficial and vascular imaging on compatible phones and tablets. Its 7.5 and 10.0 MHz frequencies, 20–100 mm depth settings and 40 mm footprint provide a versatile field of view for everyday point-of-care work.
The platform features 192 elements and 64 channels in a cable-free handheld body, with iOS and Android support and a replaceable battery architecture for mobile clinical routines.
Configuration, software compatibility, accessories, regulatory availability and intended use are confirmed for each destination during consultation.
Mobile workflow
Your screen. Your workflow.

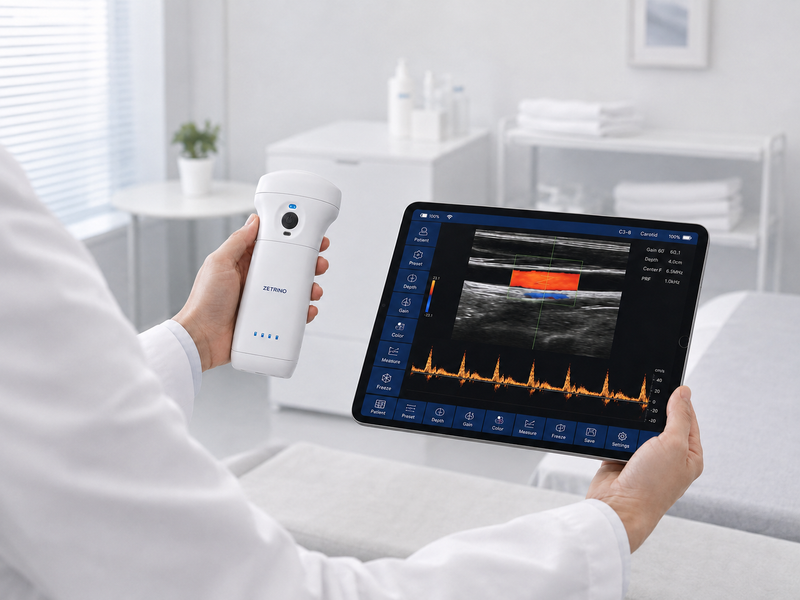

Connect the probe to a compatible phone or tablet and keep the imaging experience close to the point of care. The interface, supported modes, and export options depend on the approved application and market.
- Cable-free connection to supported mobile devices
- Familiar touch controls for imaging and review
- Supported still-image and clip capture for documentation workflows
Connected care
Easily share information and connect.
Supported image and video formats help move studies from the mobile device into review and documentation workflows, keeping information available where clinical teams need it.
DICOM-ready files
Save supported studies in DCM format alongside JPG images and MP4 clips.
Connect to PACS
Route supported studies into a configured picture archiving and communication system for central review and storage.
Available to the EMR
Make approved patient imaging available to the electronic medical record through the configured clinical workflow.
PACS and EMR interoperability depends on the probe application, software version, network, destination system, interface configuration, local IT policy, and market availability. Confirm the required workflow with a Zetrino specialist.

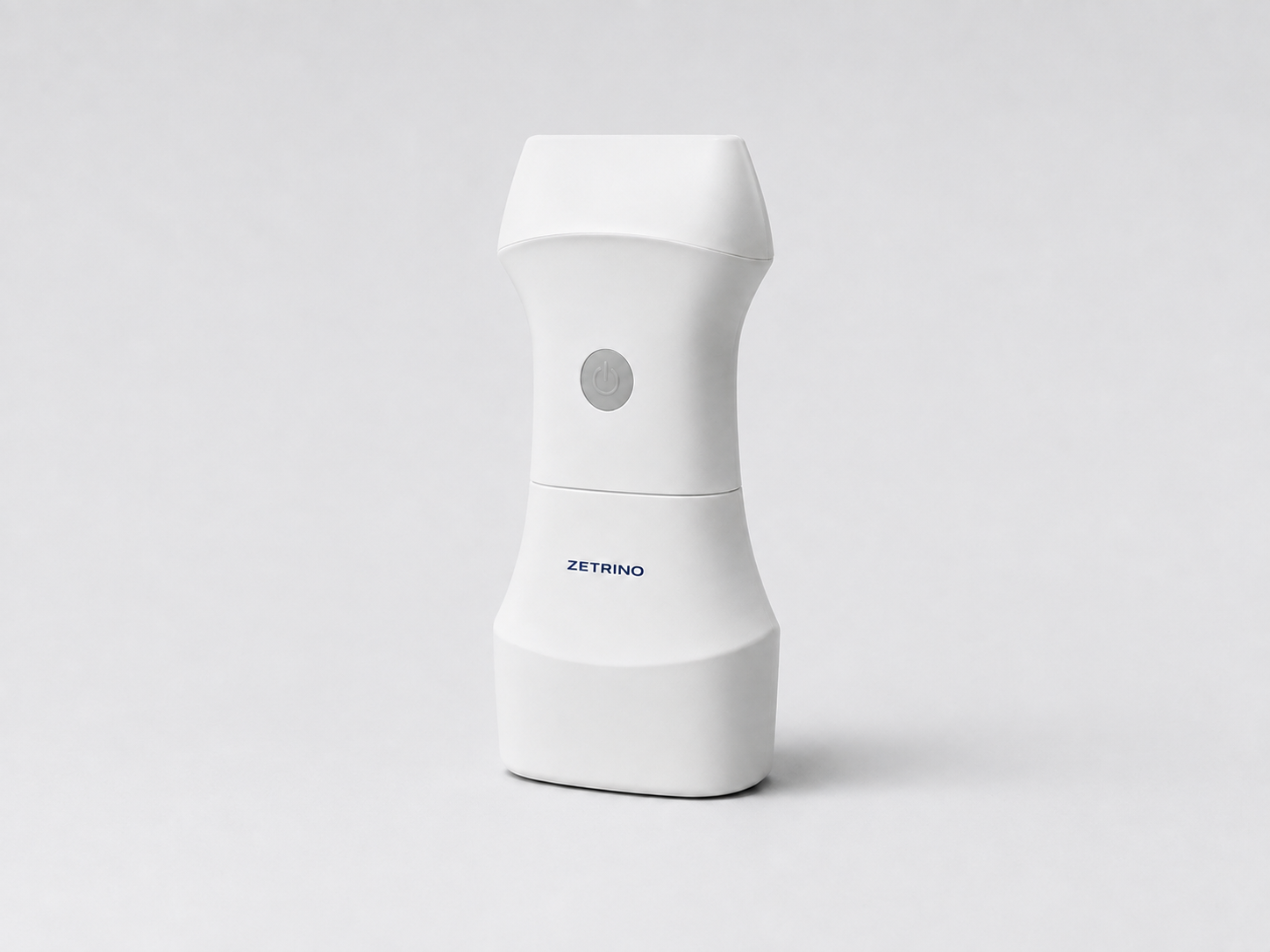

Purpose-built hardware
Choose the field of view the application needs.
A broad linear footprint for compatible vascular, musculoskeletal, lung, and superficial imaging workflows.
Linear arrayArray configuration
40 mmActive footprint
Replaceable power
Prepared for a mobile working day.
The replaceable 2200 mAh battery design supports mobile workflows and allows a depleted module to be exchanged instead of taking the full probe out of service. Operating time depends on scan mode, device, settings, and battery condition.

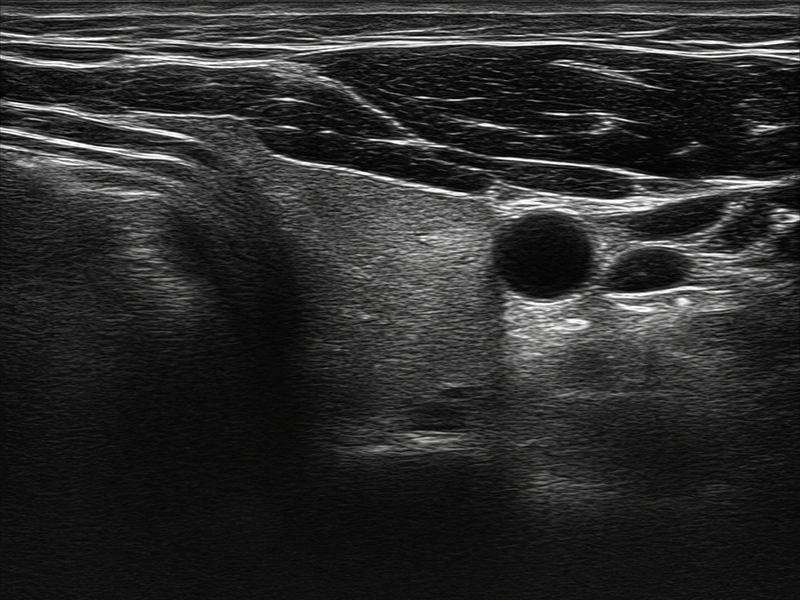

Representative imaging
Linear imaging for everyday detail.

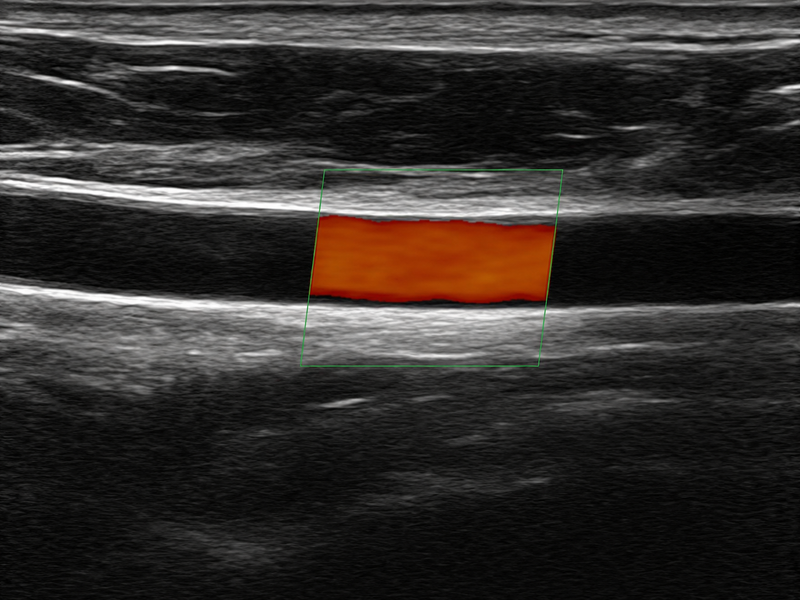

Vascular color and superficial examples align with the Linear X9 broad 40 mm linear footprint.
Representative marketing images derived from supplier reference material. Image appearance varies with probe, preset, settings, operator, patient, mobile device, and software version; these examples are not diagnostic claims.
Platform essentials
Technical specifications.
A concise comparison of verified supplier specifications for this configuration. Final supplied specifications and approved indications are confirmed during inquiry.
- Transducer
- Linear array
- Frequency
- 7.5 / 10.0 MHz
- Depth settings
- 20 / 40 / 60 / 100 mm
- Array footprint
- 40 mm
- Elements
- 192
- Channels
- 64
- Imaging modes
- B, B/M, Color, PDI, and PW on compatible configurations
- Power
- Replaceable 2200 mAh battery
- Compatibility
- Compatible iOS and Android phones and tablets; exact device and OS support must be confirmed
- Media support
- Model-dependent JPG, MP4, and DCM support
For trained healthcare professionals. Specifications, intended use, regulatory status, application features, and availability vary by country. Review the locally approved documentation before clinical use.
Questions, answered
What to know before choosing a probe.
Which phones and tablets are compatible?
Compatibility depends on the probe, application version, operating system, and market. Include your device model and OS version in the inquiry so the current compatibility list can be checked.
Which imaging modes are available?
Compatible X9 configurations support B, B/M, Color, Power Doppler, and Pulsed-Wave modes. Available modes and measurements depend on model, software version, and local approval.
Can the battery be replaced?
The selected X9 launch configurations use a replaceable 2200 mAh battery design. Runtime varies with scan mode, wireless conditions, display device, and battery condition.
Can this product be ordered in my country?
Zetrino accepts inquiries worldwide, but quotation, shipment, intended use, and sale are subject to local regulatory approval and product availability.
Product inquiry
Discuss Zetrino Linear X9 with a specialist.
Tell us where and how you plan to use the probe. We will confirm the relevant configuration, compatibility, regulatory availability, documentation, and commercial terms for your country.
